MOTORBosch Performance Line CX, 250W, 85Nm, Kiox display
BATTERYBosch PowerTube 750Wh integrated battery

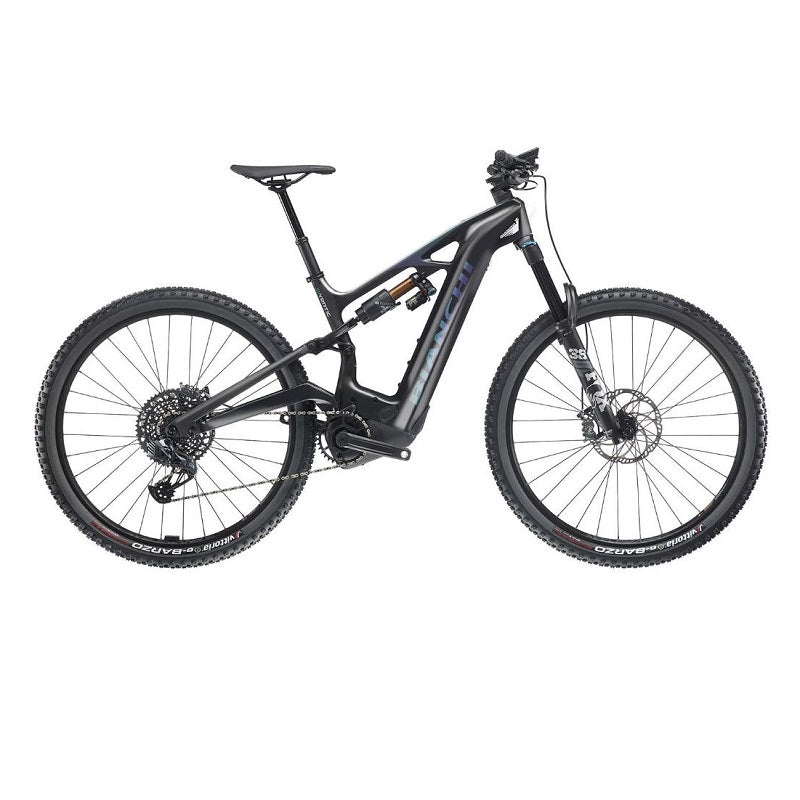

FRAMEe-VERTIC FX-Type Pro – full carbon sizes: 43, 48, 53 – 12×148 mm thru axle dropouts – Post mount 180 disc brake type – 160mm travel front & rear – Internal cable routing in steerer
FORKRockShox ZEB 29″, 160mm travel, 1.5″ tapered HT, Maxle Ultimate 15x110mm BOOST axle, minimum 200mm rotor, maximum 220mm rotor, 44mm rake, 63mm crown, DebonAir
REARSHOCKRockShox Deluxe Select +, 230/65, DebonAir Progressive, Damer Type RT, Compression Tune L, Lockout Force 380, black finish tube, external rebound adjustment, Volume reducer 0 Neg 1 Pos
HEADSETAcros AIX-545 1.8″ top / 1.5″ – internal cable routing
SHIFTERSSram NX EAGLE 1×12
REAR DERAILLEURSram GX Eagle, 12sp
CRANKSETFSA CK-320/IS/Gen4 FSA E-Bike Diecast Crankset ISIS / 165mm / Die cast aluminum Sram X-SYNC 2 Eagle Chainring, 34T
BOTTOM BRACKETincluded in the motor
CHAINSram GX EAGLE, 12sp
BRAKESMagura MT Thirty
ROTORMagura MDR-C Centerlock – 203 mm
WHEELSVelomann Tubeless Ready 29″, 622×30, 32 hole
REARHUBFormula CL-1481, for Center Lock, 32h, 12x148mm TA
FRONTHUBFormula CL-811 per fissaggio centrale, 32h, 15x110mm TA
TIREVittoria e-Barzo 29×2.6 XC-Trail TNT
STEMVelomann, 50mm, 35mm, 1″1/8
HANDLEBARVelomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°
GRIPST-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp
SEATPOSTVelomann, diam.31,6mm, internal remote cable routing, 120mm/150mm travel – 120mm for size 43 – 150mm for sizes 48, 53
SADDLEVelomann Gnd Full-fit Start Up, carbon steel rail, 262×145
To reduce production and delivery times the supplier sometimes have to make last-minute changes to product specifications. These updates may not always be reflected in the product descriptions or images on our website.
